| HIKVISION DS-3WF3000-EI-5AC/P ACCESS POINT Outdoor 5Ghz 867Mbps 3KM Wireless Bridge Kit

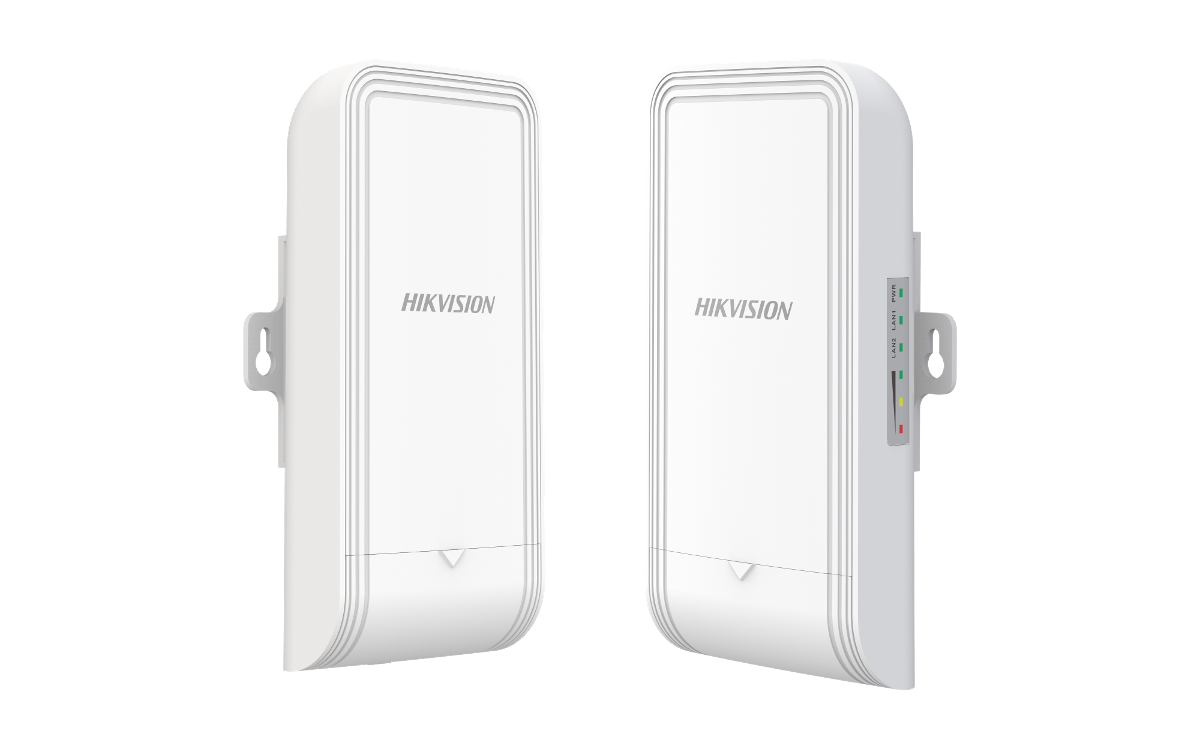

HIKVISION DS-3WF3000-EI-5AC/P ACCESS POINT Outdoor 5Ghz 867Mbps 3KM Wireless Bridge Kit
เพิ่มเมื่อ: 2025-05-01 14:33:28.0
แก้ไขล่าสุด: 2025-05-01 14:33:44.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comACCESS POINT (แอคเซสพอยต์) HIKVISION DS-3WF3000-EI-5AC/P ACCESS POINT (แอคเซสพอยต์) Outdoor 5Ghz 867Mbps 3KM Wireless Bridge Kit
HIKVISION DS-3WF3000-EI-5AC/P
ACCESS POINT (แอคเซสพอยต์) HIKVISION DS-3WF3000-EI-5AC/P ACCESS POINT (แอคเซสพอยต์) Outdoor 5Ghz 867Mbps 3KM Wireless Bridge Kit
- Up to 3 km wireless transmission distance
- 867 Mbps 802.11ac wireless bridge
- Built-in 8 dBi 2 x 2 MIMO antenna
- Visualized topology management
- Standard PoE Input & Output
- Plug and Play
Max. Transmission Rate of Air Interface : ≤ 867 Mbps
Wireless Standard : IEEE 802.11/a/n/ac
Working Frequency Band : 5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz
Antenna Gain : 8 dBi
Antenna Angle : (H) Beamwidth [3 dB] 50° (V) Beamwidth [3 dB] 50°
Transmitting Power : 22 dBm @11ac 80MHz MCS0 (Note: Transmitting power may vary with local regulations.)
Receiving Sensitivity : -84 ±2dBm@AC80-MCS0
Throughput Rate : PTP: ,90 Mbps/0.5 KM(AC80),90 Mbps/1 KM(AC80),40 Mbps/3 KM(AC80),PTMP(1 to 4): ,20 Mbps/3 KM(AC80)
Network Interface : 2 × 10/100 Mbps RJ45 ports
LED Indicator : Power indicator,LAN indicator,Signal intensity indicator
Reset : Hardware resetting button
Power Supply : 48V PoE/12~24V DC;Check the physical interface image below for more details.
PoE Port : AP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3 af PoE OUT
PoE Power Budget : 10 W
PoE Distance : 100 m
Product Dimensions (W × H × D) : 90.8 mm × 187.87 mm × 57.87 mm (3.58'' × 7.4'' × 2.28'')
Package Dimensions (W × H × D) : 256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38")
Net Weight : 0.26 kg (0.57 lb) per device
Gross Weight : 1.1 kg (2.43 lb)
Packing List : Wireless Bridge × 2,PoE Power Supply × 2,AC Cord × 2,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1,Binding Tape × 4
Packing Method : Packing in pairs
Working Temperature : -30 °C to 65 °C (-22 °F to 149 °F)
Working Humidity : 5% to 95% (no condensation)
Storage Temperature : -40 °C to 80 °C (-40 °F to 176 °F)
Storage Humidity : 5% to 95% (no condensation)
Installation Mode : Pole Mounting
Ingress Protection : IP55
Power Consumption : 2.43 W for typical (1-ch 2MP IPC), Max. 3.6 W
