TOA รุ่น DA-250FH CE
เพิ่มเมื่อ: 2012-10-13 15:09:37.0
แก้ไขล่าสุด: 2012-10-13 15:46:29.0
เบอร์โทรติดต่อ: 089-9218269 , 084-5552145
อีเมลล์: soundsiamweb@gmail.com
รายละเอียด:
เครื่องขยายเสียง MULTICHANNEL POWER AMPLIFIERS
เครื่องขยายเสียง MULTICHANNEL POWER AMPLIFIERS
53200.00 บาท
สินค้าที่เกี่ยวข้อง

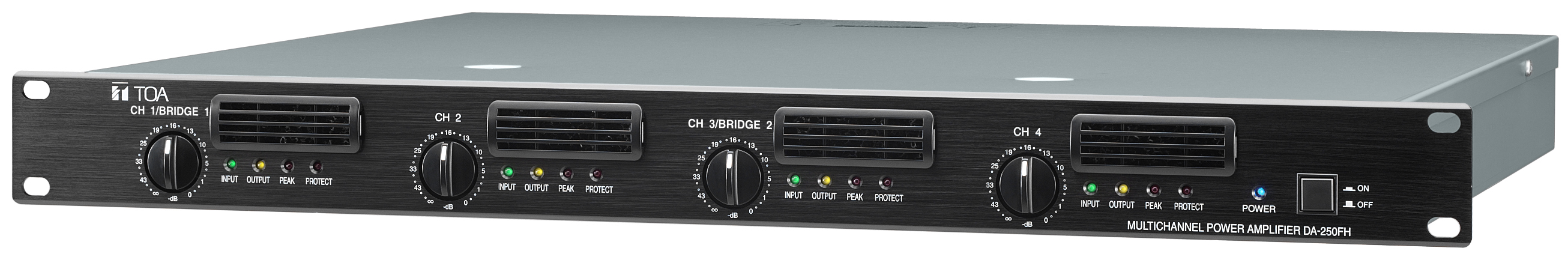

DA-250FH
The DA-250FH is a 4-Channel Digital Power Amplifier designed for 100 V line high-impedance distribution and features lightweight, compact, high power output, and high efficiency. It delivers 250 W × 4 channels (40 Ω output) using a switching power supply. Each channel is equipped with an independent power section. It can be electrically isolated from the high-impedance speaker system by attaching the MT-251H Output Transformer (optional). It can be mounted in an EIA Standard equipment rack (1 unit size).
|
Specification
|
|
Power Source
|
220 - 240 V AC
|
|
Amplification System
|
Class D
|
|
Power Consumption
|
200 W (based on EN standards)
1150 W (rated output 100 V line |
|
Input
|
4 circuits
10 kΩ CH 1 mode ON/OFF switch (ON: CH 1 to All ch |
|
Rated Output
|
4 channels: 250 W × 4 (100 V line
M4 screw terminal |
|
Frequency Response
|
50 Hz - 20 kHz (-3 dB
|
|
Total Harmonic Distortion
|
0.1 % (1 kHz)
0.3 % (100 Hz - 20 kHz) |
|
Protection Circuit
|
Protection against excessive current flow due to overload
short circuit temperature rise at power amp. heat sink (110 ℃ (230 ゜F) or more) temperature rise inside the unit (80 ℃ (176 ゜F) or more) |
|
S/N Ratio
|
100 dB (A-weighted)
|
|
Crosstalk
|
70 dB (A-weighted)
|
|
LED Indicator
|
Power (blue) × 1
Peak (red) × 4 |
|
Cooling
|
Forced air cooling
|
|
Operating Temperature
|
-10 ℃ to +40 ℃ (14 ゜F to 104 ゜F)
|
|
Operating Humidity
|
90 %RH or less (no condensation)
|
|
Finish
|
Panel: Aluminum
Case: Plated steel sheet |
|
Dimensions
|
482 (W) × 44 (H) × 401.8 (D) mm (18.98 × 1.73" × 15.82)
|
|
Weight
|
6.8 kg (14.99 lb)
|
|
Accessory
|
Power cord (2 m (6.56 ft)) …1
Tamper-proof cap …4 |
|
Option
|
Matching transformer: MT-251H
|
|
